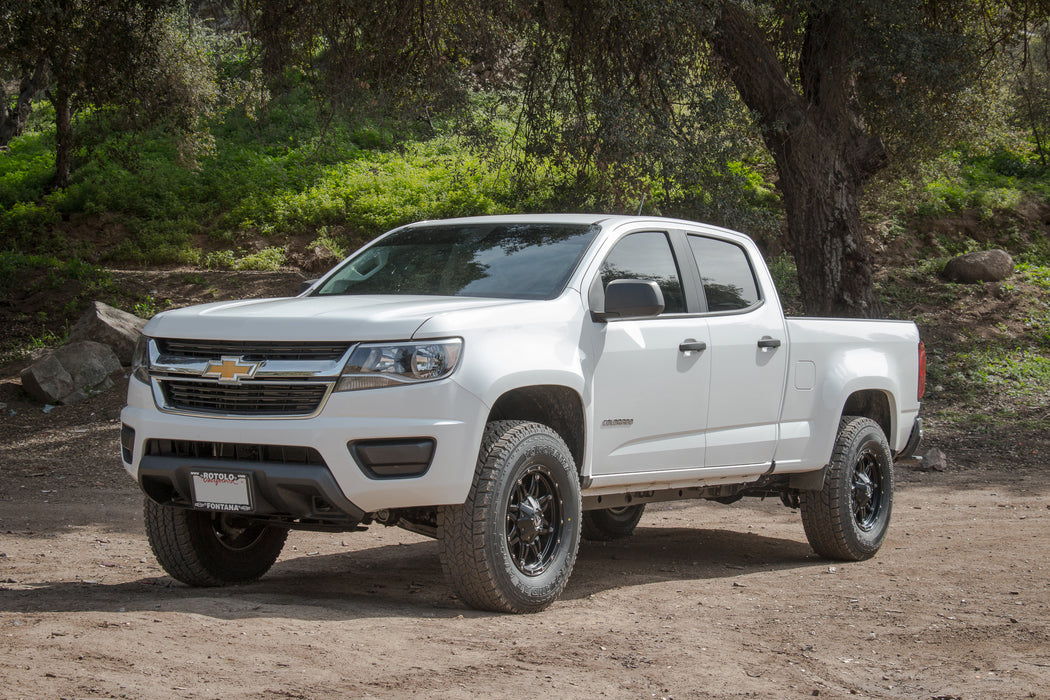

ICON 2015-2022 Chevrolet Colorado/GMC Canyon 1.75-3" Lift Stage 1 Suspension System

ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Fits 2WD and 4WD models
• 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
• 100% Bolt-on system - no drilling or welding necessary for install
• Compatible with diesel models
• 25% increase in wheel travel over stock
• Improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Height-adjustable coilovers offer 1.75-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103419183
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• California Prop 65 Warning: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• 30: Yes
• 2064: Steel
• 2371: NO
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 13.0000 x 7.0000 inches
• Weight: 48.0000 lb
