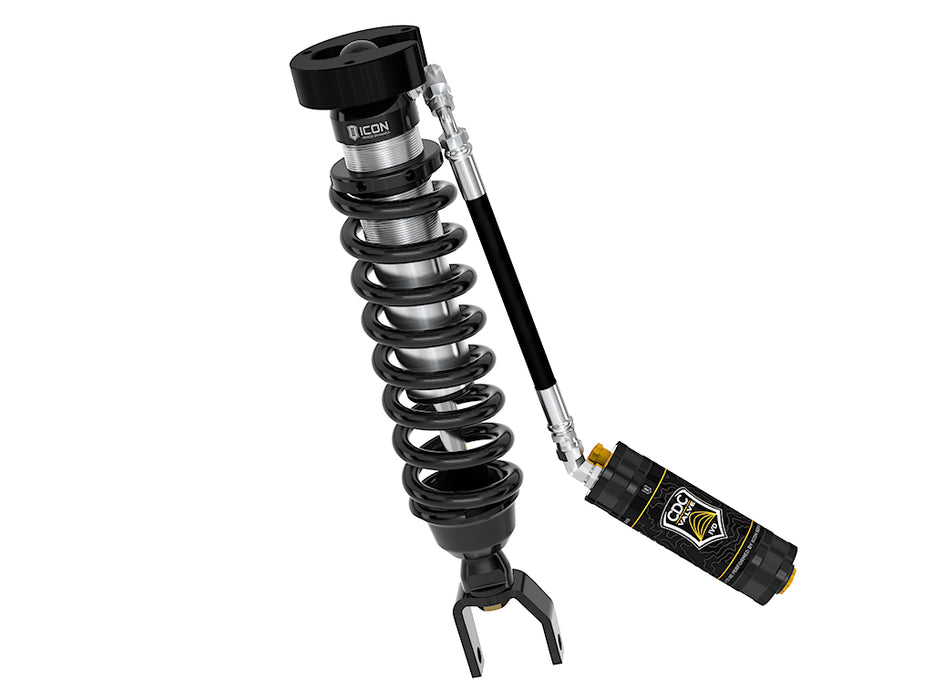

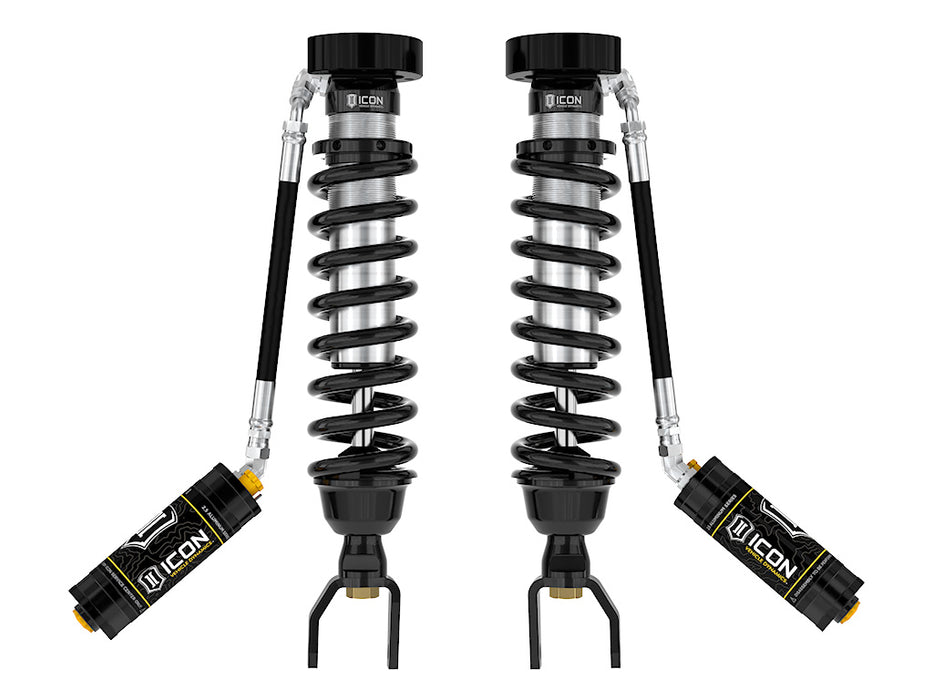

19-UP RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

• Increased wheel travel and ride quality over stock
• Adjustable from 2-3" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
• ICON CDCV equipped for external tuneability of your shocks
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• High strength alloy CNC machined lower mounting clevis
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-Up Ram 1500
• Vehicle specific tuned for superior shock damping and control

Attributes:

• GTIN: 00840103411804
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 3390: Performance
• 408: Center of Clevis Holes
• 409: Top of Upper Mount Plate
• 48: Clevis
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2,5
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Damping: Yes
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Material: Aluminum
• Maximum Lift: 3
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 57.0000 lb
