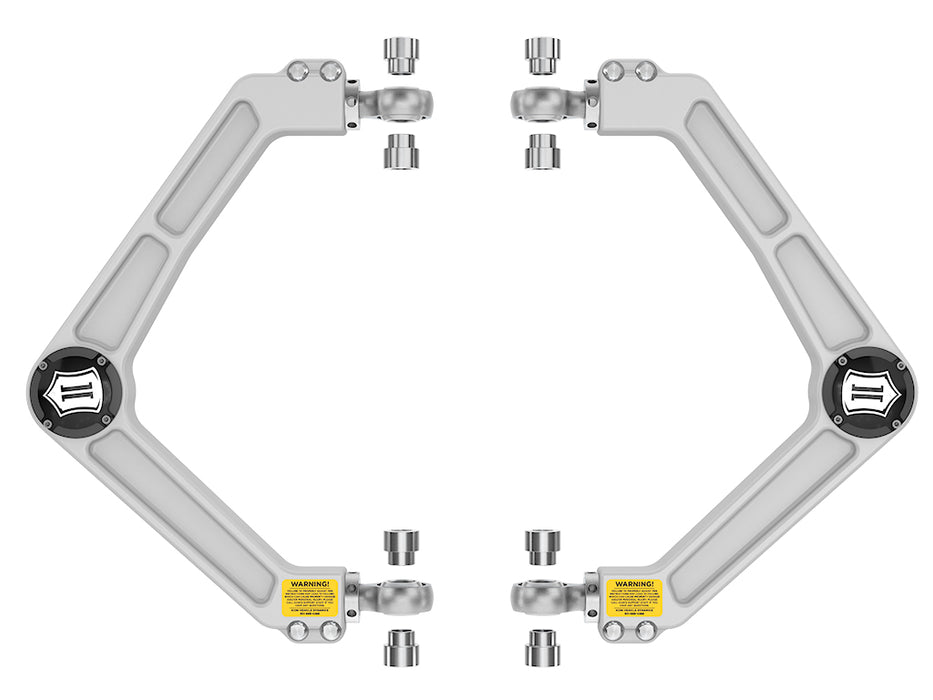

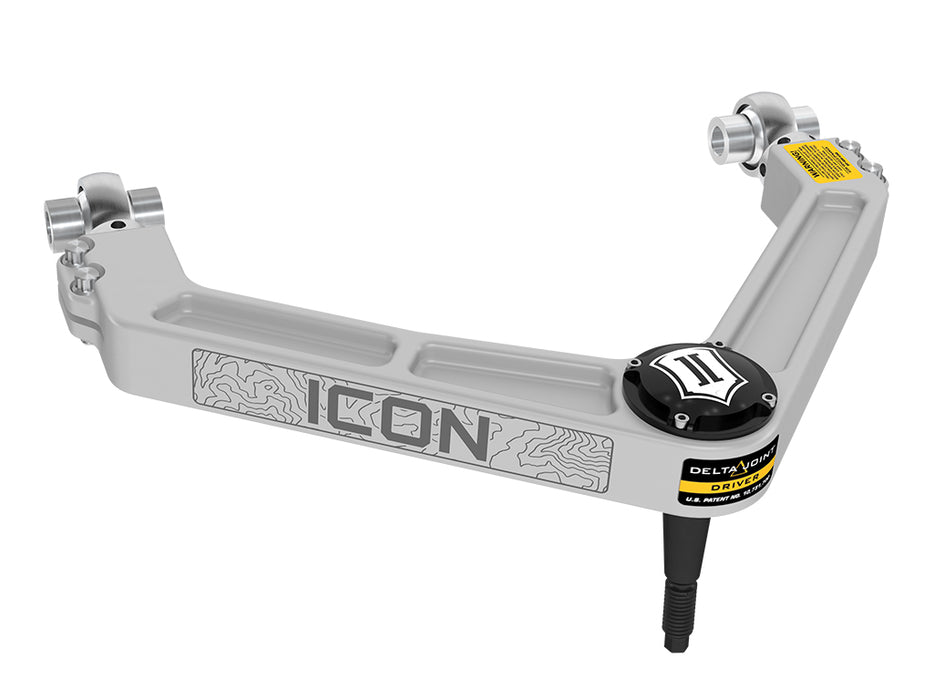

19-UP RAM 1500 BILLET UCA DJ KIT
SKU: FRDK-218560DJ
Original price
$2,326.65
-
Original price
$2,326.65
Original price
$2,326.65
$2,326.65
$2,326.65
-
$2,326.65
Current price
$2,326.65
These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and imptrecves handling on lifted or stock height trucks
- Quick, precise, on-vehicle adjustment for both caster and camber
- Patented ICON Delta Joint allows maximum articulation without binding
- Quality PTFE-lined ¾” FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed Delta Joint dust cover cap
Attributes:
- GTIN: 00840103411774
- Brand Name: ICON Vehicle Dynamics
- 2330: Yes
- 2339: yes
- 2354: Performance
- 2371: Yes
- 2382: Press In
- 2383: Threaded
- 2384: Yes
- 2389: Aluminum
- 30: Yes
- 3390: Performance
- 40: Yes
- 4888: Silver
- 73: Rod End Bearing
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Control Arm Construction: Billet
- Finish: Anodized
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Service Parts: 614554 - 04-20 F150/09-UP RAM 1500 DELTA JOINT KIT
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 16.0000 x 15.0000 x 6.0000 inches
- Weight: 25.0000 lb
