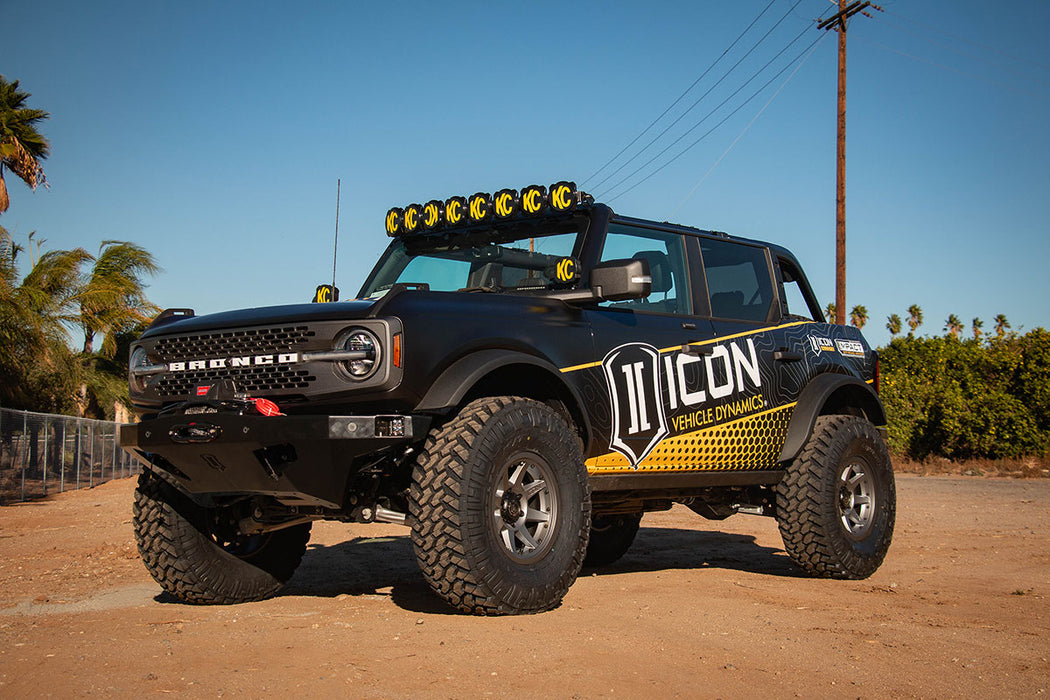

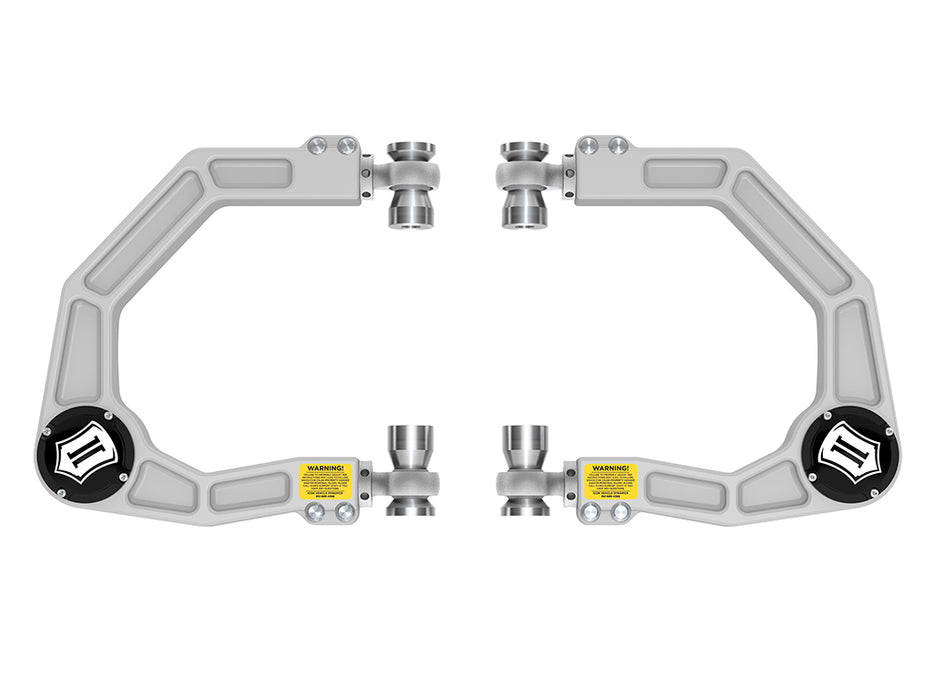

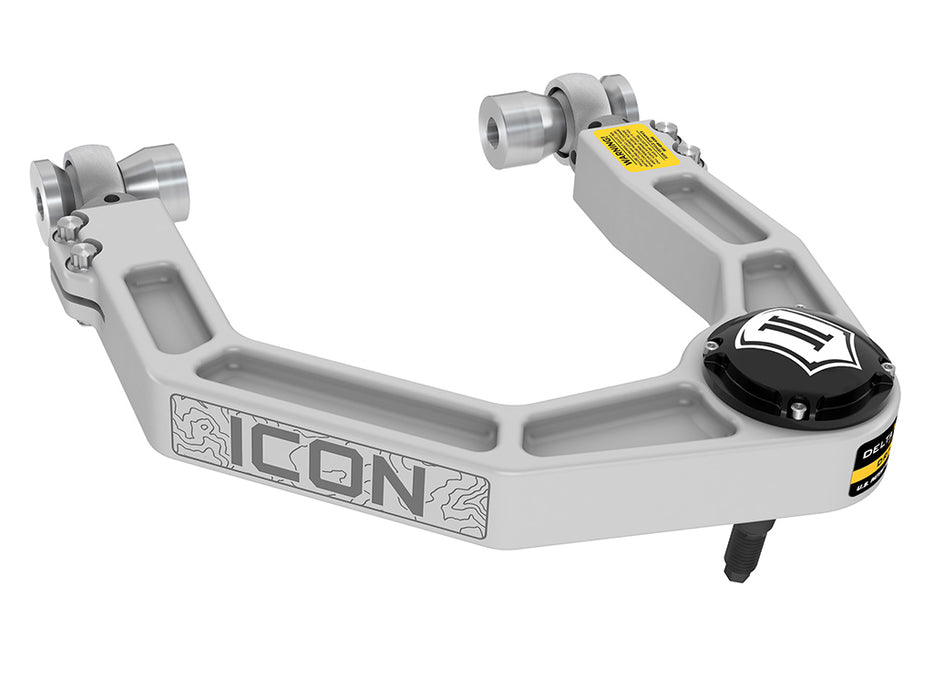

ICON 2021-2023 Ford Bronco Billet Upper Control Arm/Delta Joint Pro Kit
SKU: FRDK-48500DJ
Original price
$2,089.04
-
Original price
$2,089.04
Original price
$2,089.04
$2,089.04
$2,089.04
-
$2,089.04
Current price
$2,089.04
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows increased travel on lifted or stock height Broncos
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
Attributes:
- GTIN: 00840103412306
- Brand Name: ICON Vehicle Dynamics
- 2330: Yes
- 2339: yes
- 2354: Performance
- 2371: Yes
- 2382: Press In
- 2383: Threaded
- 2384: Yes
- 2389: Aluminum
- 30: Yes
- 3390: Performance
- 40: Yes
- 4888: Silver
- 73: Rod End Bearing
- Bushing Color: Silver
- Control Arm Construction: Billet
- Finish: Anodized
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Tires: 35" x 12.50"
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 16.0000 x 15.0000 x 6.0000 inches
- Weight: 19.0000 lb
