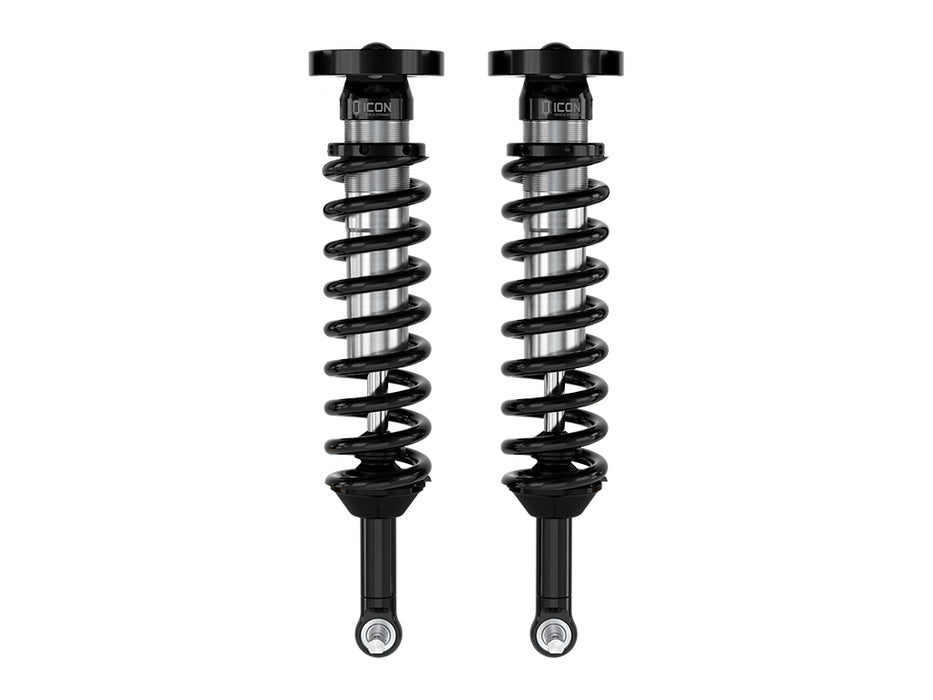

ICON 2023 GMC Canyon/Chevrolet Colorado Trail Boss & ZR2 2.5 Series Coilover Kit Internal Reservoir

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023 GMC Canyon and 2023 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.

• Increased front wheel travel and improved ride quality over stock
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 1.75-2.5" of front lift height over stock
• Internal nitrogen reservoir ensures consistent performance under hard use
• ICON engineered coil springs
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• 7/8" diameter hardened chrome plated shafts
• 6061 Aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings for extended longevity and minimal deflection

Attributes:

• GTIN: 00840103427126
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 3390: Performance
• 408: Flat on Bar Pin
• 409: Top of Upper Mount Plate
• 48: Bar Pin
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2.5
• 8703: No
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Material: Aluminum
• Maximum Lift: 2.5
• Minimum Lift: 1.75
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Remote Reservoir: No
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 13.0000 x 7.0000 inches
• Weight: 50.0000 lb
