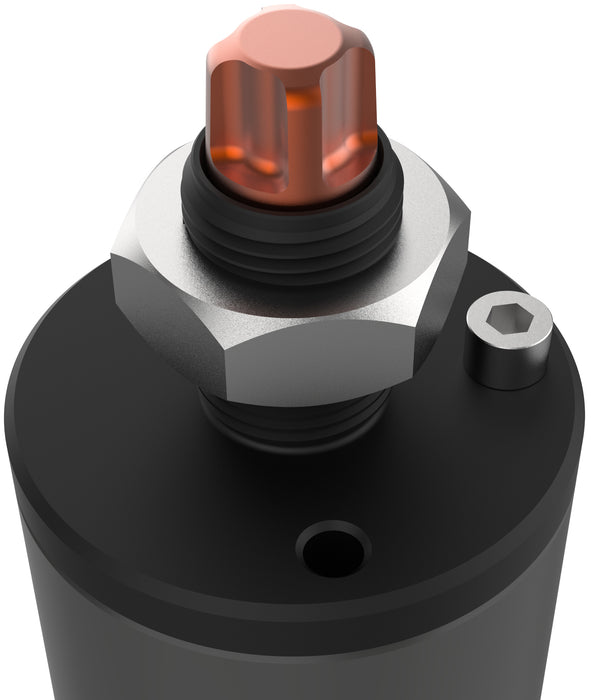

FACTORY RACE 2.5 X 3.8 BUMP STOP PINCH MOUNT

FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.

• NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
• Hard chome plated 4130 chromoly steel shaft
• Owner serviceable and rebuildable
• JM92 MIL-SPEC oil developed specifically for off-road racing
• Black Anodized CNC Machined Aluminum Components

Attributes:

• GTIN: 00711745593404
• Brand Name: FOX Offroad Shocks
• Body Diameter (in): 2.5
• Body Material: Steel
• Bottom Mount: None
• Compressed Length (in): 11.70
• Extended Length (in): 15.45
• Fox Catalog: OFFROAD
• Label Name: 2.5 FRS, B/S, Pinch Mount, 3.8"
• Reservoir Type: Emulsion
• Series: Factory Race
• Shaft Size (in): 1-5/8
• Top Mount: Pinch
• Travel (in): 3.75
• Type: Bump Stop
• Valving: 807-24-323

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18.0000 x 2.8750 x 2.8750 inches
• Weight: 0 lb
