Diode Dynamics - SS5 Bumper LED Pod Light Kit For 2021-2023 Ford F-150 Sport White Combo

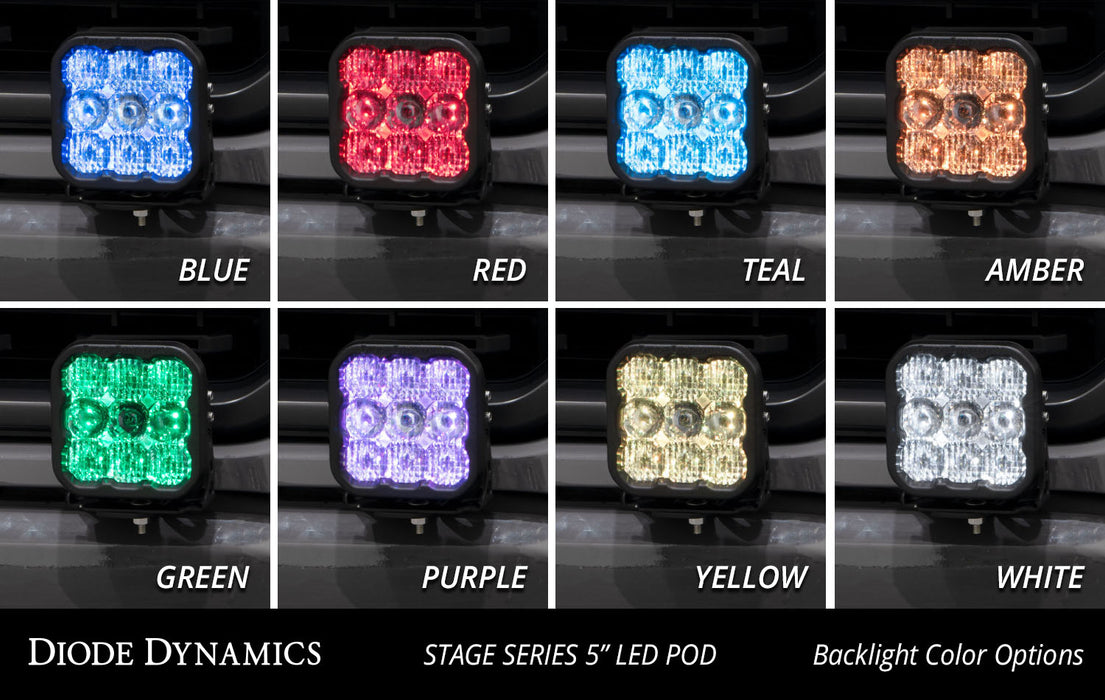

<p><strong>Features</strong></p><ul><li>Bolt-on fitment compatible with Ford F-150 2021-2023</li><li>Ultra-high intensity with custom-engineered TIR optics</li><li>Selectable backlight color with eight color options</li><li>Torture-tested heavy-duty construction</li><li>Control through factory aux switch bank using the included harness</li><li>Assembled in USA</li></ul><p>&nbsp;</p><p><strong>Overview</strong></p><p><strong>Perfect Fitment.</strong> The Bumper LED Pod Light Kit compatible with Ford F-150 2021-2023 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.</p><p><strong>Designed for Performance.</strong> Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.</p><p><strong>Selectable Backlight.</strong> The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.</p><p><strong>NOTE:</strong> The existing mounting points must be drilled out larger in order to secure the bracket.</p>

• Bolt-on fitment on 2021+ Ford F-150
• Ultra-high intensity with custom-engineered TIR optics
• Brilliant amber backlight color for additional accent
• Torture-tested heavy-duty construction
• Assembled in USA

Attributes:

• Brand Name: Diode Dynamics
• GTIN: 00195995128638
• Add-On: N/A
• Base Material: Steel
• Bolt Grade: High
• Bolt Thread Type: Medium
• Color Temp: 6000K
• Compliance Rating: SAE J575 Durability Test
• Drilling Required: No
• Housing Color: Black
• Housing Finish: Powdercoat
• Input Power (watts): 40
• Intensity (lux): 81 600 cd

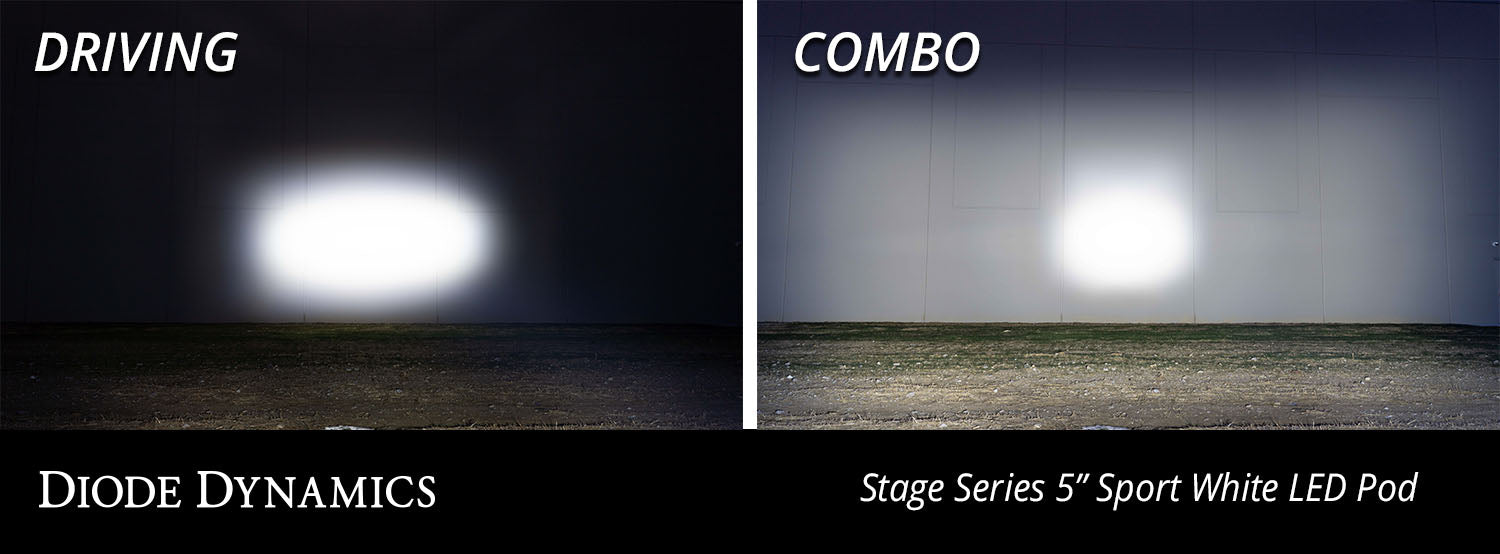

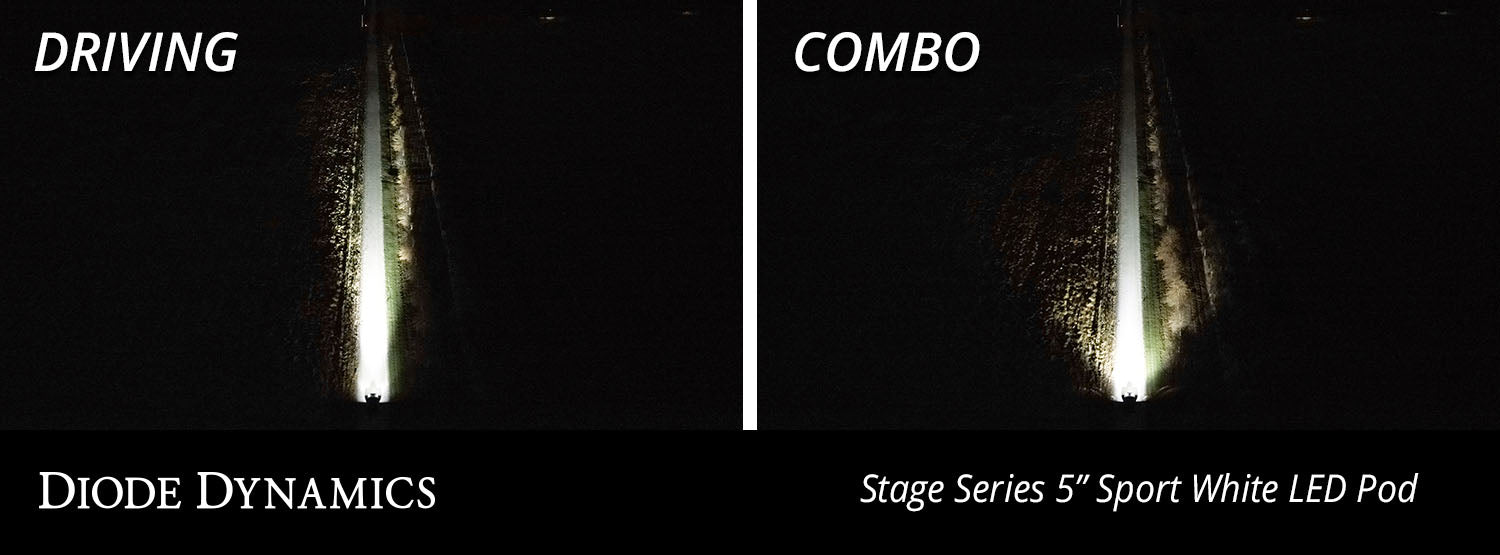

• Light Beam Pattern: Combination
• Measured Output (lumens): 3 800 lm
• Mounting Hardware Included: Yes
• Operating Temperature: -40C to 85C (-40F to 185F)
• Operating Voltage: 9-16V
• Sheen Level: Matte
• Universal Or Specific Fit: Specific
• Weather Resistant: Yes
• Wire Quantity: 2

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 15 x 12 inches
• Weight: 14 POUNDS
